NEMA34 86BLF3A125-3103 310VDC 3000RPM 2.1N.M 660W Brushless DC Motor

Product Categories
Changyi Industrial (Shanghai) Co.,Ltd
Contact Now

NEMA34 86BLF3A125-3103 310VDC 3000RPM 2.1N.M 660W Brushless DC Motor

Place of Origin : Changzhou

Brand Name : Changyi

Certification : GSG is9000

Model Number : 86BLF3A125-3103

Voltage : 310v

Rated speed : 3000rpm

Rated torque : 2.1N.m

Power : 660w

Current : 2.8A

Weight : 4kg

Length : 150mm

MOQ : 100pcs

Price : USD80/PCS

Packaging Details : CARTON

Delivery Time : 20-25 WORKING DAYS

Payment Terms : T/T IN ADVANCE

Supply Ability : 5000 A MONTH

Contact Now

Brushless DC Motor NEMA34

86BLF3A125-3103

Specification:

MODEL

86BLF3A125-3103

Voltage (VDC)

310

Rated speed(rpm)

3000

Rated torque(N.m)

2.1

Rated current(A)

2.8

Power(W)

660

Peak torque(N.m)

6.3

Torque constant(N.m/A)

0.75

Length(mm)

150

Weight(kg)

4

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gear box.

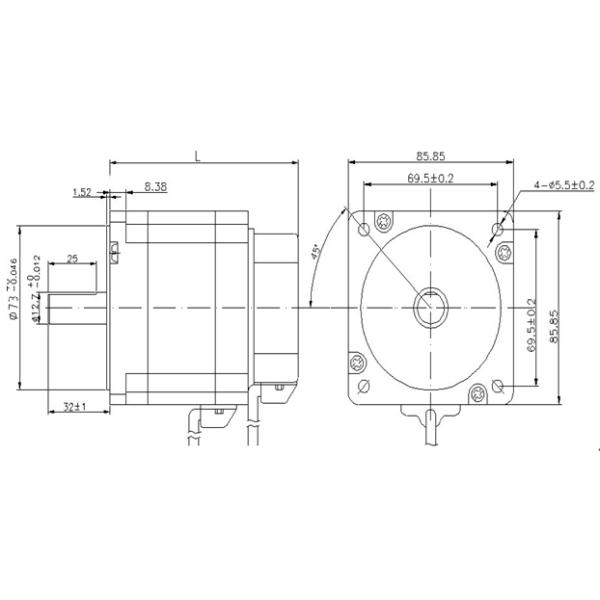

Figure:

NEMA34 86BLF3A125-3103 310VDC 3000RPM 2.1N.M 660W Brushless DC Motor

Wiring Diagram:

NEMA34 86BLF3A125-3103 310VDC 3000RPM 2.1N.M 660W Brushless DC Motor
